Coriolis Vibratory Accelerometer Gyro Sensor Quartz Micromechanical

Brand Name : AVIC

Model Number : AVIC3-1

Place of Origin : CHINA

MOQ : 1

Payment Terms : T/T

Supply Ability : 1000/month

Delivery Time : 10 days for sample

Packaging Details : carton with sponge

product name : micromechanical gyroscope

gyro range : ± 50 ~ ± 500deg/s

Startup time : <10s

Zero Bias Stability : <0.03deg/s

Resolution : <0.01deg/s

Bandwidth : >50 Hz

Contact Now

high reliability acceleration Gyro, quartz micromechanical gyroscope, Coriolis vibratory gyroscope​

Product features

  • All-solid-state
  • high reliability
  • Small size,
  • light weight
  • low power consumption
  • Impact resistance
  • good environmental adaptability

Product introduction

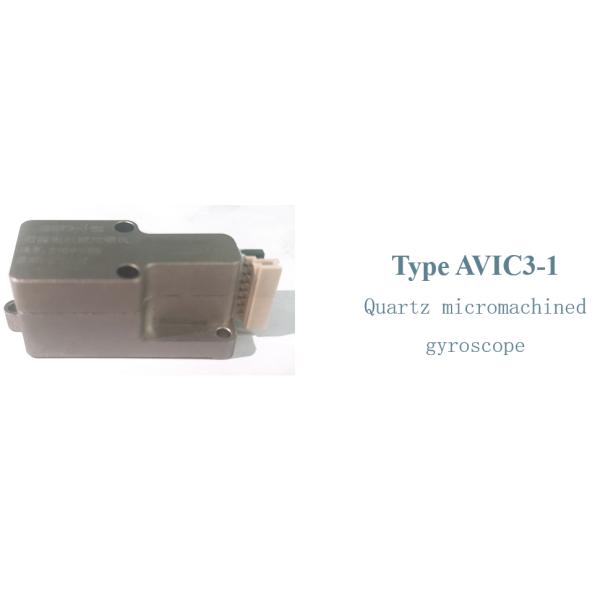

The AVIC3-1 quartz micromechanical gyroscope is a single-axis output Coriolis vibratory gyroscope. Its sensitive device is made of quartz crystal and processed by MEMS technology. The product has the characteristics of small size, high reliability, resistance to harsh environment, mass production and so on. Optional single/dual power supply and output.

Field of application

Platform stabilization and control system, inertial measurement and control of armored vehicles, unmanned aerial vehicles, vehicles and other platforms.

Main technical indicators Physical dimensions and electrical characteristics
Measuring range. /S ± 50 ~ ± 500 Overall dimensions 69 x 26 x 26 ( mm )
Startup time, S <10 Weight w60g
Zero Bias Stability. /S ( 1°) <0.03* Supply voltage + 8 ~ + 15V or ± 8 ~ ± 15V
Zero-bias temperature sensitivity, °/s/° C <0.03* Output voltage 0 ~ 5V or ± 5V
Scale Factor Temperature Sensitivity,%/° C <0.05* Power consumption w600mW
Resolution. /S <0.01* Environmental indicators
Threshold, ° Is <0.01* Operating temperature -40°C~60°C
Non-linear,% FS <0.05* Storage temperature -45°C 〜+85°C
Bandwidth, Hz >50 Vibration 20〜2000Hz, 0.04g2/Hz
G Sensitivity, °/s/G <0.03 Impact 200g
Output mode
The measurement range is ± 100. Typical index at/s YH18-7 electrical connector, analog output
