Navigation Grade Fiber Optic Gyroscope FOG)Sensor for Aerospace Inertial Navigation System

Brand Name : FIREPOWER

Model Number : MFOG-910

Place of Origin : China

MOQ : 1

Price : 500$

Payment Terms : L/C,T/T

Supply Ability : 500/month

Delivery Time : 1 week for sample

Packaging Details : sponge +carton

Measurement Range : 240°/s

Bias Repeatability : 0.8°/h

Size : 82mmx82mmx 19.5mm

Zero-bias stability : 0.8°/h

Scale factor nonlinearity : ≤1000ppm

Acceleration : ≥70g

Contact Now

MFOG-910 Micro-Nano Fiber Optic Gyroscope

The MFOG-910 Micro-Nano Fiber Optic Gyroscope (hereinafter referred to as "the product") is an angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it incorporates various micro-nano fiber-optic devices to detect, process, and feedback the phase difference generated by two counter-propagating beams of light, thereby achieving precise angular rate measurement.

The product is primarily composed of optical path assemblies, electronic circuits, and mechanical structures. It features a simple design with no moving or wearing parts, ensuring fast startup, compact size, lightweight construction, and high reliability. It is suitable for attitude control and motion measurement in various carrier systems


Main Performance Parameters

Serial number

Project

Performance indicators

1

Range (°/s)

±240

2

Scale factor (mV/ o /s)

47±5

3

Scale factor nonlinearity (ppm)

≤1000

4

Zero-bias stability (10s, 1σ, o /H)

≤0.8

5

Zero-bias repeatability (1σ, o /H)

≤0.8

6

3dB Bandwidth (Hz)

≥1000

7

Random walk ( o /√ H)

≤0.02

8

Power supply (V)

5+0.25

+12

9

Power Consumption (W)

≤1.5

10

Impact (g)

≥1500

11

(g)

≥70

12

Life (years) (calculated assessment)

≥15

13

MTBF (Calculated Assessment)

≥100000

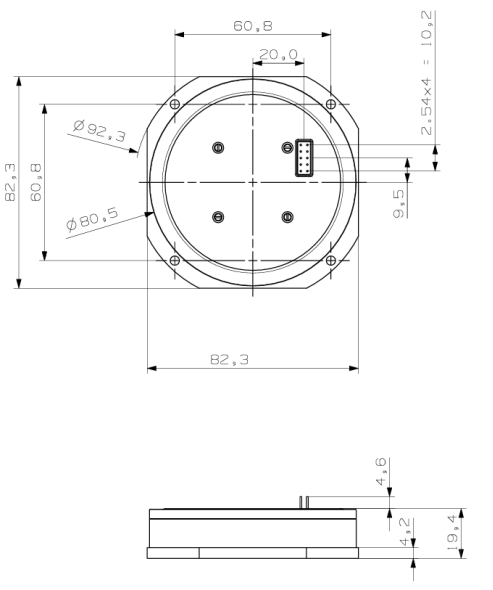

Installation Dimensions

Navigation Grade Fiber Optic Gyroscope FOG)Sensor for Aerospace Inertial Navigation System


Product Tags:

fiber optic gyroscope aerospace navigation



inertial navigation system FOG sensor



navigation grade gyroscope sensor


Quality Navigation Grade Fiber Optic Gyroscope FOG)Sensor for Aerospace Inertial Navigation System for sale

Navigation Grade Fiber Optic Gyroscope FOG)Sensor for Aerospace Inertial Navigation System Images
